Style TSA
For boring to a square sholder in a 90˚ boring bar
can also turn to a OD square sholder

TOOL TOOL SHANK DIMENSIONS NOSE
STYLE STYLE X Y Z RADIUS
AR-4 AL-4 1/4 1/4 2 1/64
AR-5 AL-5 5/16 5/16 2-1/4 1/64
AR-6 AL-6 3/8 3/8 2-1/2 1/64
AR-7 AL-7 7/16 7/16 3 1/32
AR-8 AL-8 1/2 1/2 3-1/2 1/32
AR-10 AL-10 5/8 5/8 4 1/32
AR-12 AL-12 3/4 3/4 4-1/2 1/32
AR-16 AL-16 1 1 7 1/32
AR-20 AL-20 1-1/4 1-1/4 8 1/32
AR-44 AL-44 1/2 1 7 1/32
AR-54 AL-54 5/8 1 6 1/32
AR-55 AL-55 5/8 1-1/4 8 1/32
AR-64 AL-64 3/4 1 6 1/32
AR-66 -- 3/4 1-1/2 8 1/32
AR-85 -- 1 1-1/4 8 1/32
AR-86 --

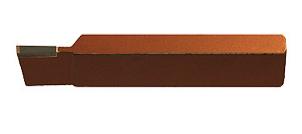

Style AR / AL
For turning to a square sholder.
Used for general machining operations such as turning, boring and chamfering
TOOL SHANK DIMENSIONS
STYLE X Y Z
C-4 1/4 1/4 2
C-5 5/16 5/16 2-1/4
C-6 3/8 3/8 2-1/2
C-7 7/16 7/16 3
C-8 1/2 1/2 3-1/2
C-10 6/8 6/8 4
C-12 3/4 3/4 4-1/2
C-16 1 1 6
C-20 1-1/4 1-1/4 8
C-44 1/2 1 7
C-54 5/8 1 6
C-55 5/8 1-1/4 8
C-64 3/4 1 6
C-66 3/4 1-1/2 8
C-86 1 1-1/2 8
TOOL TOOL CT/CTL SHANK DIMENSIONS
STYLE STYLE A B C D W
COR-44-2 COL-44-2 CT-111 1/2 1 5 13/16 1/8
COR-44-3 COL-44-3 CT-122 1/2 1 5 13/16 3/16
COR-44-4 COL-44-4 CT-121 1/2 1 5 1 1/4
COR-44-5 COL-44-5 CT-120 1/2 1 5 1 5/16
COR-55-6 COL-55-6 CT-130 5/8 1-1/4 5 1-1/4 3/8
COR-66-6 COL-66-6 CT-140 3/4 1-1/2 6 1-1/4 3/8
Style BR / BL
For turning when no square sholder is required.
Used for general machining operations such as turning, facing and chamfering
TOOL TOOL SHANK DIMENSIONS NOSE
STYLE STYLE X Y Z RADIUS
BR-4 BL-4 1/4 1/4 2 1/64
BR-5 BL-5 5/16 5/16 2-1/4 1/64
BR-6 BL-6 3/8 3/8 2-1/2 1/64
BR-7 BL-7 7/16 7/16 3 1/32
BR-8 BL-8 1/2 1/2 3-1/2 1/32
BR-10 BL-10 5/8 5/8 4 1/32
BR-12 BL-12 3/4 3/4 4-1/2 1/32
BR-16 BL-16 1 1 7 1/32
BR-20 BL-20 1-1/4 1-1/4 8 1/32
BR-55 BL-55 5/8 1-1/4 8 1/32
BR-64 BL-64 3/4 1 6 1/32
BR-66 BL-66 3/4 1-1/2 8 1/32
BR-86 BL-86 1 1-1/2 8
Style D
Pointed Nose
80
˚ Included Angle
Used for under cutting and ID and ID chamfering
Style COR / COL CT/CTL
Cutoff Tools
Used for Cutoff or Grooving
TOOL SHANK DIMENSIONS NOSE
STYLE X Y Z RADIUS
D-4 1/4 1/4 2 1/64
D-5 5/16 5/16 2-1/4 1/64
D-6 3/8 3/8 2-1/2 1/64
D-7 7/16 7/16 3 1/32
D-8 1/2 1/2 3-1/2 1/32
D-10 5/8 5/8 4 1/32
D-12 3/4 3/4 4-1/2 1/32
D-16 1 1 6 1/32
Style C

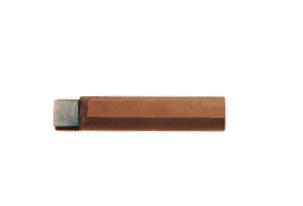

Square Nose for chamfering
General purpose tool for chamfering, facing and turning
TOOL TOOL SHANK DIMENSIONS
STYLE STYLE X Y Z S
ER-4 EL-4 1/4 1/4 2 1/16
ER-5 EL-5 5/16 5/16 2-1/4 1/16
ER-6 EL-6 3/8 3/8 2-1/2
ER-8 EL-8 1/2 1/2 3-1/2 3/32
ER-10 EL-10 5/8 5/8 4 3/32
ER-12 EL-12 3/4 3/4 4-1/2 1/8
TOOL SHANK DIMENSIONS
STYLE X Y Z
E-4 1/4 1/4 2
E-5 5/16 5/16 2-1/4
E-6 3/8 3/8 2-1/2
E-8 1/2 1/2 3-1/2
E-10 5/8 5/8 4
E-12 3/4 3/4 4-1/2
TOOL TOOL SHANK DIMENSIONS
STYLE STYLE X Y Z O R
FR-8 FL-8 1/2 1/2 3-1/2 1/4 1/32
FR-10 FL-10 5/8 5/8 4 3/8 1/32
FR-12 FL-12 3/4 3/4 4-1/2 5/8 1/32
FR-16 FL-16 1 1 7 3/4 1/32
FR-20 FL-20 1-1/4 1-1/4 8 3/4 1/32
FR-24 FL-24 1/2
FR-44 FL-44 1/2 1 6 1/2 1/32
FR-55 FL-55 5/8 1-1/4 7 5/8 1/32
FR-64 FL-64 3/4 1 6 5/8 1/32
FR-66 FL-66
FR-85 FL-85 1 1-1/4 8 3/4 1/32
FR-86 FL-86 1 1-1/2 8 3/4 1/32
TOOL TOOL SHANK DIMENSIONS
STYLE STYLE X Y Z O R
GR-8 GL-8 1/2 1/2 3-1/2 1/4 1/32
GR-10 GL-10 5/8 5/8 4 3/8 1/32
GR-12 GL-12 3/4 3/4 4-1/2 5/8 1/32
GR-16 GL-16 1 1 7 3/4 1/32
GR-20 GL-20 1-1/4 1-1/4 8 3/4 1/32
GR-24 GL-24
GR-44 GL-44 1/2 1 6 1/2 1/32
GR-55 GL-55 5/8 1-1/4 7 5/8 1/32
GR-64 GL-64 3/4 1 6 5/8 1/32
GR-66 GL-66
GR-85 GL-85 1 1-1/4 8 3/4 1/32
GR-86   1 1-1/2 8 3/4 1/32
TOOL TOOL SHANK DIMENSIONS NOSE
STYLE STYLE A B C D RADIUS
TRC-5 TRE-5 5/16 .297 1-1/2 1/4 1/64
TRC-6 TRE-6 3/8 .397 1-3/4 9/32 1/64
TRC-7 TRE-7 7/16 .414 2-1/2 11/32 1/32
TRC-8 TRE-8 1/2 .469 2-1/2 3/8 1/32
TOOL TOOL SHANK DIMENSIONS
STYLE STYLE A B C D
TRG-5 TRH-5 5/16 19/64 1-1/2 7/32
TRG-6 TRH-6 3/8 11/32 1-3/4 1/4
TRG-7   7/16 13/32 2-1/2 5/16
TRG-8 TRH-8 1/2 15/32 2-1/2 11/32
TOOL SHANK DIMENSIONS
STYLE X Y Z
TSA-4 1/4 1/4 1-1/2
TSA-5 5/16 5/16 1-1/2
TSA-6 3/8 3/8 1-3/4
TSA-8 1/2 1/2 2-1/2
TSA-10 5/8 5/8 3
TSA-12 3/4 3/4 3-1/2
TOOL SHANK DIMENSIONS NOSE
STYLE X Y Z RADIUS
TSC-4 1/4 1/4 1-1/2 1/64
TSC-5 5/16 5/16 1-1/2 1/64
TSC-6 3/8 3/8 1-3/4 1/64
TSC-7 7/16 7/16 2-1/2 1/32
TSC-8 1/2 1/2 2-1/2 1/32
TSC-10 5/8 5/8 3 1/32
TSC-12 3/4 3/4 3-1/2 1/32
TOOL SHANK DIMENSIONS NOSE
STYLE A B C RADIUS
TSE-4 1/4 1/4 1-1/2 1/64
TSE-5 5/16 5/16 1-1/2 1/64
TSE-6 3/8 3/8 1-3/4 1/64
TES-7 7/16 7/16 2-1/2 1/32
TSE-8 1/2 1/2 2-1/2 1/32
TES-10 5/8 5/8 3 1/32
TSE-12 3/4 3/4 4-1/2 1/32
Style E
Threading Tool
Standard 60˚ included angle for universal threading, v-grooving, chamfering, and turning.
Style ER/EL
60
˚ Offset Threading
Right or Left hand offset for threading close to sholder
Style FR/FL
Offset End Cutting
for facing or turning to a square sholder
Style GR/GL
Offset Sq Side Cutting
for turning or facing to a square sholder
Style TSC
For Boring to Sq. Sholder in a 30
˚ boring bar
can also ID chamfer with a 0˚ boring bar
Style TSE
For Boring to Sq. Sholder in a 45
˚ boring bar
or boring to a 15˚ sholder with a 30˚ boring bar

Style TRC/TRE
Round Shank 45
˚  Angle Tools
Style TRG/TRH
Round Shank Square Front Tools

ANSI Brazed Cutting Tools

We offer all popular styles and sizes of single point brazed cutting tools.


Available in grades C2. C5. C6 or MicroGrain with
        polished tops*

Specials of all types are also available made to your
        specifications.
* Polished Tops on MicroGrain only
